Bluetooth APP Control Smart Carnival Led Face Masks

1. Product Information

Product Name: Shining Mask

Product size: 225*180*50mm

LED lamp beads: 2074pcs

Pixels: 46*58 (irregular)

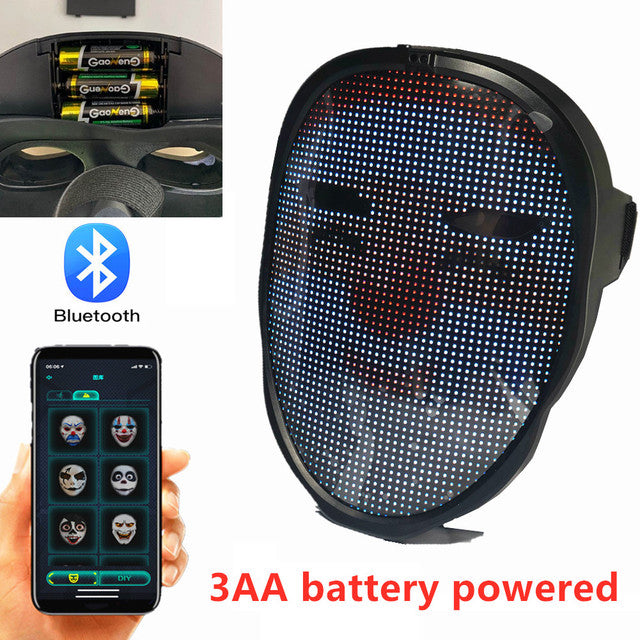

Battery Performance : 103450 Polymer Battery or 3 AA batteries can choose

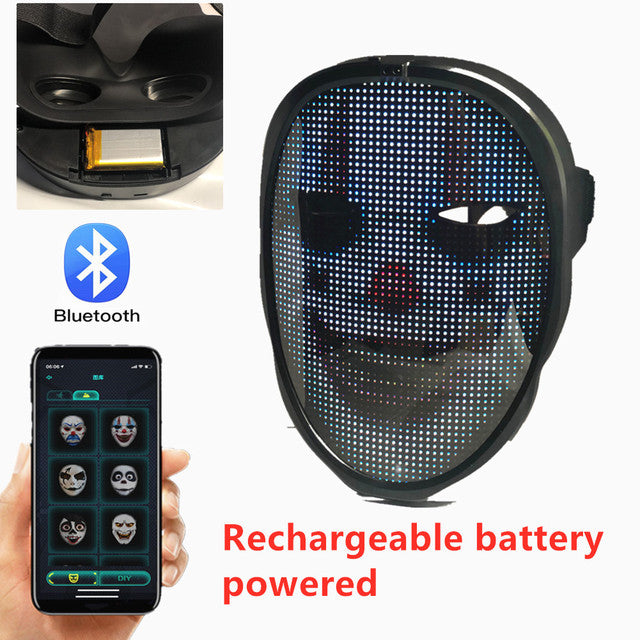

(Built-in lithium battery can be charged or use 3PCS AA battery power supply)

Product Material：ABS+PVC lens+Silica gel

Input voltage/current : 5 V/1A

Charging type：Type-c interface charging

(The 3 AA battery style has no charging port）

lithium battery Charge time : 5 hours

lithium battery Use time : 12 hours

2. Technical characteristics

Rated capacity of this product is 2000mAh.

Long life battery, up to 500 cycles or more.

This product needs to be used with the mobile phone APP (Shining Mask).

Adopting high power, high light, long life 2074 lamp beads and 2121 RGB LED lamp beads.

The screen will show the charging status when charging, ，when finish charging will display full .

Press the power button, and then cover the sensor switch with the hand, when display '' OK '' in the screen, then can use gestures to change the screen picture.

Package Included:

1*Display Mask

1*English Manual

Note: Because of transportation safety, we do not send 3PCS AA batteries, please buy at local stores

3. Introduction of the interface

APP name: Shining Mask

Operational guidelines

1. Mobile phone can scan the following QR code for download installation, or go to the Google Play/APP Store, search "Shining Glasses" to download, Scan QR code download APP

2. Turn on "Shining mask" APP, turn on Bluetooth

Note:

1. The first time you open APP, you have permission options, please select permission

2. If Android phone can not search for Bluetooth, please check if the location is open!

3. Connection equipment:

Click " "→ Select the mask to control → Click the connection → Click on the blank area to enter the main interface

MASK-XXXXXX was the name of the device searched

4. Text editing

Type text: Click on the preview box → select text color → input text content →OK, you can achieve a single text with different color effect

② Text effect: Set text color, background color, effect (left, right, flicker), speed

5. Animation & Pictures

① Click Animation & Picture, send to mask in real time.

②The picture gallery contains 105 pictures.

③ You can also upload your own photos in DIY

6.DIY

①Customized text: select monochrome or RGB color, fixed, flashing, moving to the left, right, etc. real-time display.

② Local phone pictures or pictures taken can be uploaded to the mask

7. Music rhythm

①Automatically scan the local music and play it. You can choose different rhythm effects.

②Microphone Rhythm: In Rhythm mode, you can recognize other external sounds to control the lighting effect of mask
