With The AVX-512 Instruction Set, The 7840U Can Achieve Full-Speed PS3 Emulation, Allowing For 60 FPS Gameplay In Games Such As God of War III

For smooth emulation, a higher-performance CPU is required. With the support of the AVX-512 instruction set and the brand new RDNA3 integrated graphics architecture, it can bring up to a 30% performance improvement for emulators such as RPCS3, Yuzu, Citra, Vita3K, and Xenia.

The Exclusive Oculink (SFF-8612) Female Port Supports The GPD G1 Graphics Dock, Which Delivers Performance Surpassing That Of The RTX 3070

The WIN 4 integrates an Oculink (SFF-8612) female port, providing PCIe direct connection with effective bandwidth of 63Gbps. It perfectly supports the GPD G1 mobile graphics dock, improving gaming experience and work efficiency.

The GPD G1 Is The World's Smallest Mobile Graphics Expansion Dock, Allowing GPD Handheld Devices To Have Dedicated Graphics Capabilities

4-Channel Memory With Optional Capacities Of 64GB, 32GB, or 16GB, Ensuring Worry-Free Gaming Without Concerns Of Memory Overflow

The WIN 4 utilizes 32-bit 4-channel LPDDR5x 7500MT/s memory with optional capacities of 16GB, 32GB, or 64GB in two configurations. The maximum capacity that can be allocated to video memory is up to 16GB, ensuring smooth gameplay without concerns of memory overflow.

PCIe 4.0 M.2 2280 SSD, Available in 512GB / 2TB / 4TB Options, with Read/Write Speeds Exceeding 5000MB/s and Unlimited Expandability

The AMD Ryzen 7 7840U / 7640U supports the PCIe Gen4 specification, with a theoretical maximum throughput of 7.877GB/s. The official configuration includes a 512GB / 2TB / 4TB 2280 SSD (PCIe 4.0 ×4), with TLC NAND flash memory from Changjiang Storage, achieving sequential read/write speeds of over 5000MB/s in actual tests, and is expandable without limits.

The Exclusive TDP Tuning Tool Provides Various Optimization Options To Enhance Gaming Experience And Achieve Optimal Performance

"MotionAssistant" is specially developed for GPD series handhelds. There are many optimization tools, such as: TDP power consumption can be adjusted by pressing 1W steps, GPU lock frequency, reted TDP, switch to the foreground with one key shortcut key, superimposed on the game screen, custom back button mapping shortcut keys, and change the settings without calling out the MotionAssistant, etc. It is more versatile than SteamOS. The "Power Control Panel" tool developed by overseas users can adjust various parameters more intuitively.

* MotionAssistant and Power Control Panel tools are developed by third-party enthusiastic users, and the copyright belongs to the original author.

* The above optimization tools, with the consent of the original author, will be selectively integrated into the official firmware, and the GPD official website will also provide downloads.

Support Playnite Open Source Front-end

23 Classic Theme Desktops, Switch Freely

Playnite is an open source game front-end, perfectly supported by WIN 4, support multi-language, Integrate 23 classic theme desktops, switch freely.

14 Mainstream Game Platform Data Sources

28 Game Library Integrations, Support Emulator Game Library

The resources of game platforms such as Steam, Epic, Uplay, etc., can be imported and managed by Playnite uniformly, supporting 14 mainstream game platform data sources,  28 game libraries integration, and supporting simulator game libraries.

The Exclusive Back-mount 4G LTE Module (Optional) Supports Connection To All Mobile Networks Allowing You To Play Games Anytime And Anywhere You Want

In order to ensure that users can play games anytime and anywhere they want, the WIN 4 uses an extra back-mounted 4G LTE module which supports 4G TD-LTE, FDD-LTE and 3G CDMA networks, as well as Nano-SIM card. The module is not a standard but an optional feature. When needed, just attach the module to the back of the device! Similarly, WIN 4 may also provide back-mount modules supporting M.2 2230 or 2242 SSD to make it easier to extend storage.

2 Physical Reprogrammable Back

Buttons That Allows Users To Remap

When playing games, the upper lid is generally not opened because the keyboard is not used. However, if you need to press any key that isn't mapped to the gamepad, it would be troublesome to slide up the lid every time you need it. In order to offer more flexibility to the device, we added 2 physical buttons on the back of the WIN 4 to allow you to customize key combinations and intervals with ease.

L1 / R1 Trigger Buttons Offers RGB Ambient

Lighting Effect Across Different Lighting Modes

WIN 4's L1/R1 trigger buttons featuring ambient lighting effect, lighting colors are changeable and multiple light effect modes are available.

L2 / R2 Are Linear Analog Trigger Buttons Supporting Progressive Press Which Allows Subtle Acceleration In Racing Games, Weapon Trigger Sensitivity In Shooting Games

The most popular games are largely related to either cars, guns or sport. The WIN 4 represents a continuation of the linear analog trigger button found in the WIN 3. The 27-degree tilt angle can produce 256 (0~255) status variation and converts the value of acceleration into numerical instructions. If you are a veteran player of racing games, the WIN 4 will definitely be a game changer in terms of the quality of smoothness - the progressive acceleration of your racing car and the trigger press of your gun will offer you a more immersive experience.

ALPS Original Double 3D large Joysticks With A Return To The Original Misaligned Arrangement, Comparable To The Top-grade Seimitsu And Sanwa Joysticks

WIN 4 resumes the traditional misaligned arrangement of an analog stick. The analog stick cap is decomposed into the hem and cover cap, with the former tightly clamped by the latter to prevent potential falling out. The ALPS original double 3D large joysticks that protrude out promise longer travel distances and smaller resistance. Despite a minor sacrifice of responsive speed, the design has significantly improved precision. When you are indulged in combat games, the joysticks deliver a performance comparable to top-grade Seimitsu and Sanwa products. L3/R3 is supported when pressed downward.

Double Large Rumble Motors With Adjustable Vibration Intensity And The Ability Of Turning It Off

WIN 4 adopts double large rumble motors with adjustable vibration intensity to boost vibration experience. When playing shooting games, you can feel the recoil of your gun; while the device will vibrate when you start the engine of your racing car. The device's refined vibration effect and much improved grip  will make you completely immersed in your game. If you do not like vibrations, simply turn it off.

6-axis Gyroscope Allowing You To Play Motion Sensing Games Whenever You Want

The built-in 6-axis gyroscope enables translation of body motions into different movement operation in games. Human movements thus can determine the direction of your racing car, your gun when aiming, offering more diversified gameplay approaches. The exclusive gyroscope setting software allows free adjustment of multi-functional parameters in order to offer you more flexible gaming experience!

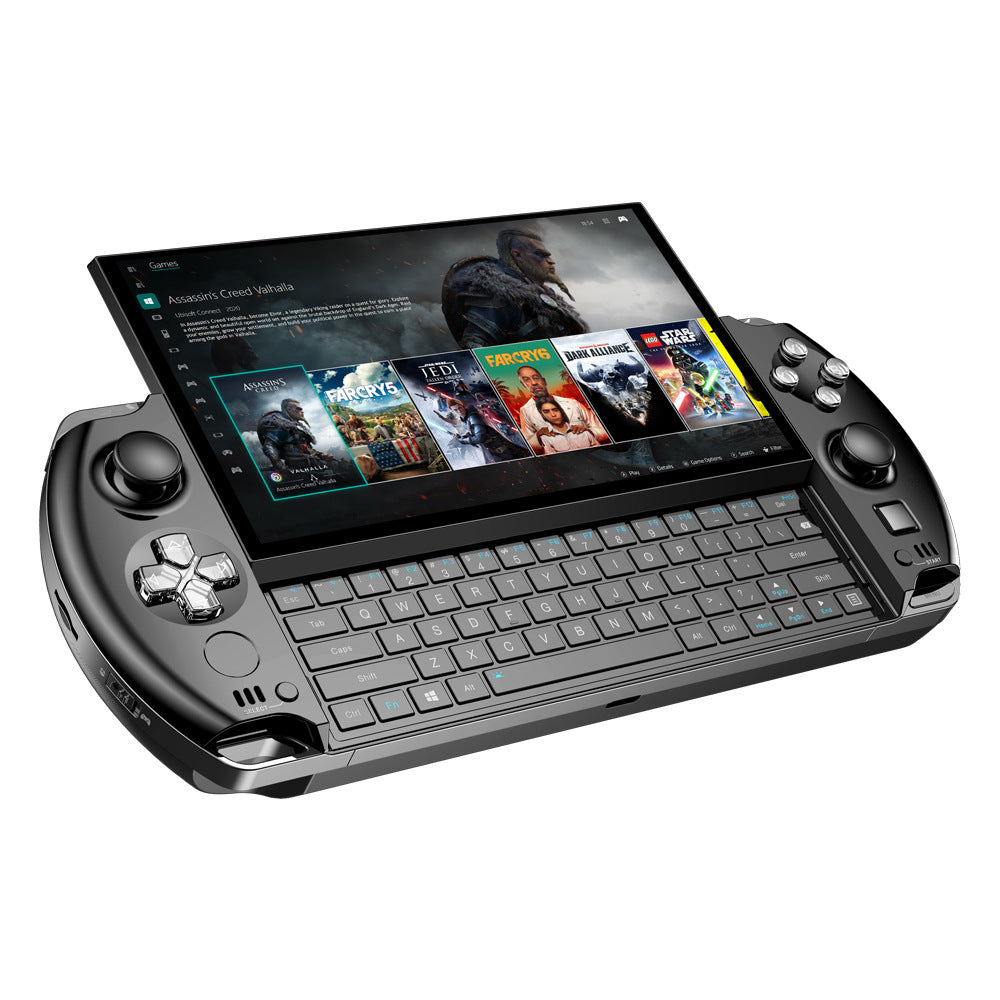

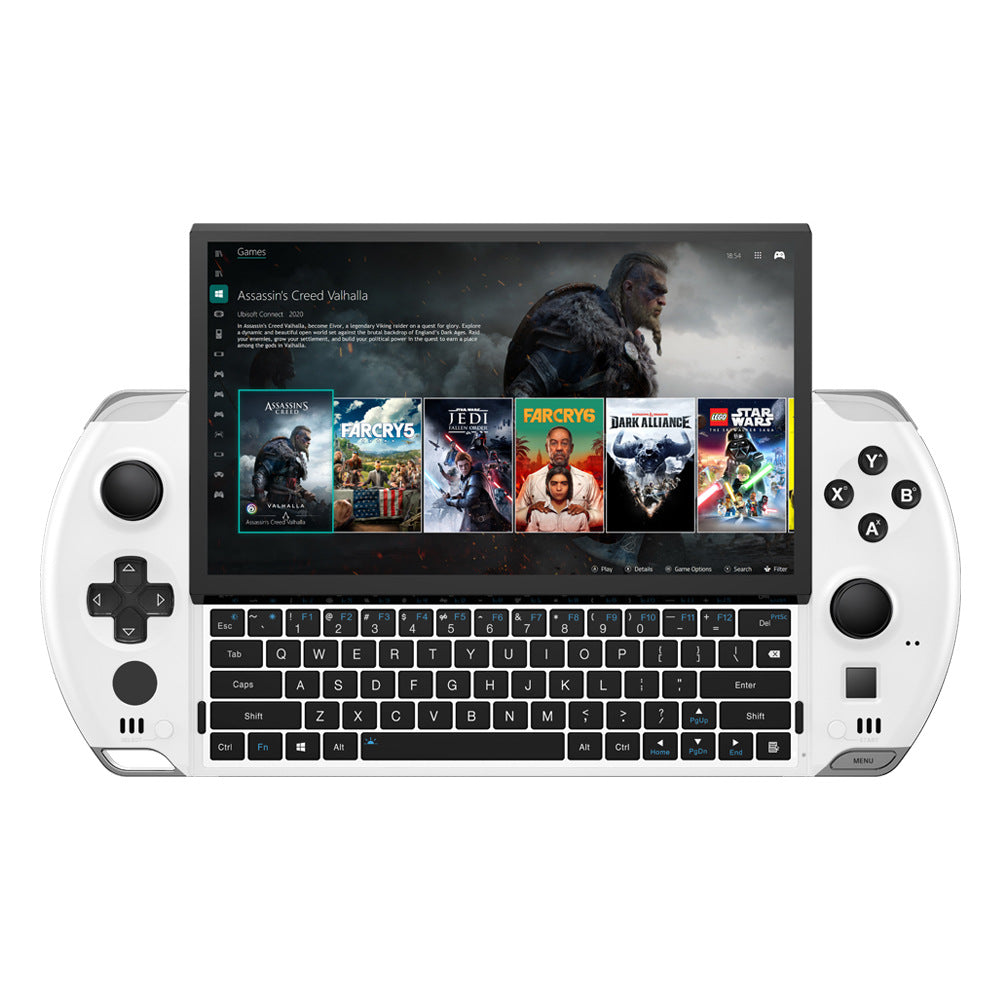

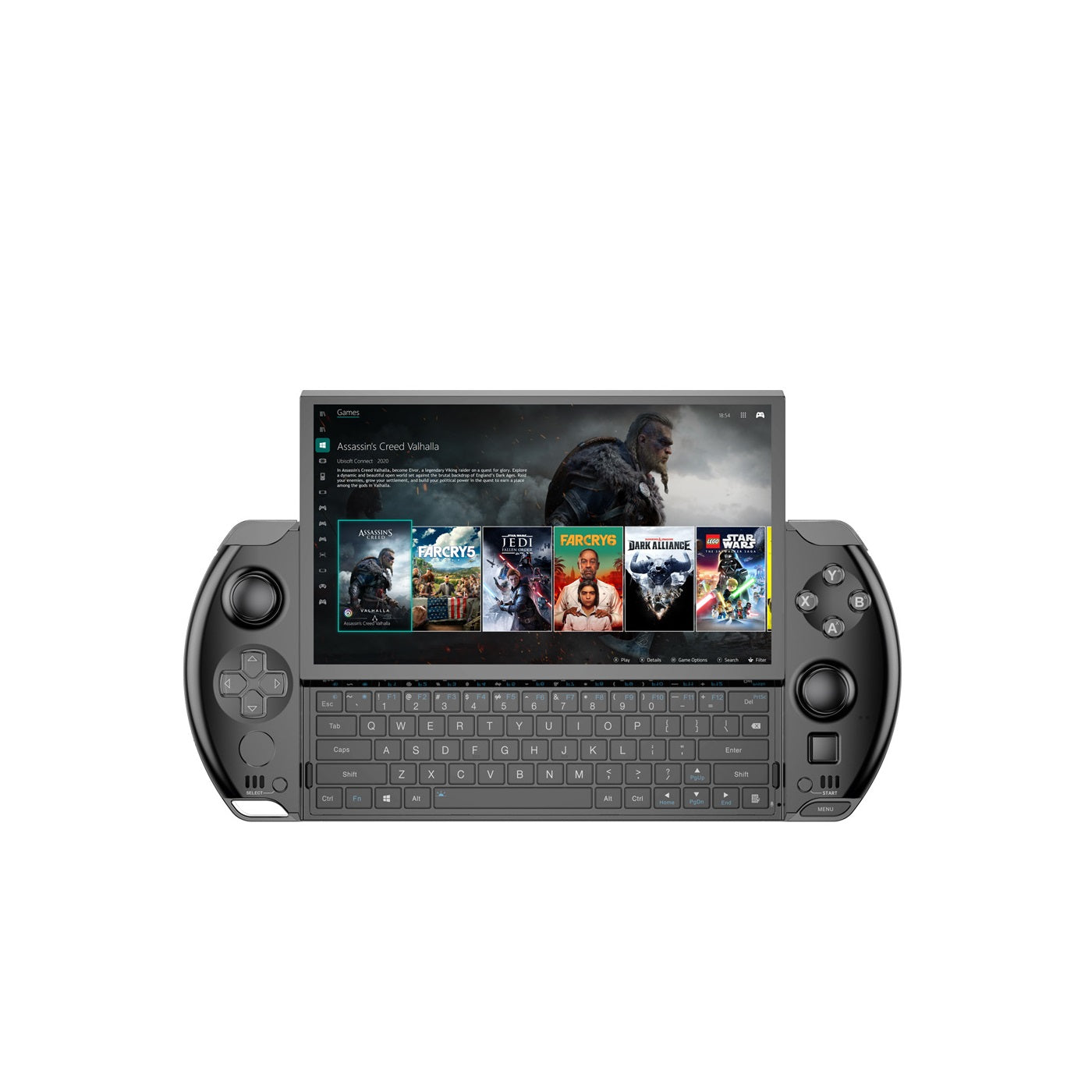

Concealed Physical Keyboard With Dome-switch Keys And Brightness Backlight

The WIN 4's design welcomes back the traditional physical keyboard with dome-switch keys. When the “QWERTY” full layout keyboard reveales, the white back light will lit up the keys. Backlight brightness has 2 levels: on and off.

PC-grade Large Turbine Fan And Thick Heat Pipes That Increase Heat Dissipation Efficiency By 35% Compared To The WIN 3

Despite its small size, the WIN 4 never compromises on power capacity and cooling solution. The cooling solution is using a larger fan than the one in the WIN3, which produces 34% more air volume, the heatpipes are 50% thicker, increasing the heat transfer by 50%, improving the overall heat dissipation efficiency by 35% .

PWM fan rotation speed is adjustable in the BIOS setting, meaning that when the internal temperature is lower than 40℃, the fan works only at 20% of its full rotation speed, when the temperature is higher than 40%, the rotation of the fan will accelerate at a rate of 2% PWM up to 100%.

Combined with the high-speed ventilation channel on the top, the heat can be rapidly vented out, translating during real tests by the device being totally silent when working at an 18W TDP. Ultimately, its noise is lower than the WIN 3 when it is running at a 28W TDP.

AAC Super Linear Dual Stereo Speakers With High Power Efficiency, High PSRR, Low Noise And Smart PA Offering Double Amplitude Enhancement, Loud And Clear Sound

In terms of sound, the WIN 4 inherits the outstanding design of WIN 3 and WIN Max 2 by adopting high-PSRR smart PA to deliver better energy efficiency and lower noise. In the meantime, it features the German AAC super linear stereo speakers with the speakerbox complemented by Bass materials, making it equivalent to a 0.9cc large speakerbox design. The dual-coil-driven diaphragm can not only balance forces imposed on it but it also enhances and doubles the amplitude , resulting in exceptionally loud and clear sound!

Extra Optical Finger Navigation Offers Ease Of Gaming And Working

To avoid repeated switches between “joystick/mouse”, Pocket 2's optical mouse sensor is added to the lower right corner of the device. Now, you are able to use the mouse to control the desktop in gaming and working even under the gamepad mode. The advantages can be summarized as follows:

The WIN 4 integrates 4 types of navigation inputs including the keyboard, right analog stick, the optical mouse sensor and the touch screen.

Retain Fingerprint Unlock Avoid Entering Password Every Time

If you leave temporarily, the screen is locked, and you have to slide the cover to enter the password every time, which is very troublesome. WIN 4 retains the fingerprint unlock function in the lower left place, and the system can be unlocked with one finger and one key!

Entirely New USB4 Port With A Data Transfer Speed Up To 40Gbps, Supporting Thunderbolt 3 Protocol And Connectivity To External Graphics Enclosure (eGPU) To Play AAA Games

The USB4 supports Thunderbolt 3 protocol, increasing the data transmission speed of each connected device up to 32Gbps (4GB/s). With connectivity to an external graphics enclosure (eGPU), you will get a wonderful experience, even latest AAA games will get significantly improved FPS and smoother graphics.

Double Type-C Ports Design (One is USB4) Ensures Both Connections To External Display And Charging

The WIN 3 has long been criticized by users for providing only one Type C port. The WIN4 adopts a dual Type-C ports design (one is USB4) supporting  connections to an external display as well as charging!
