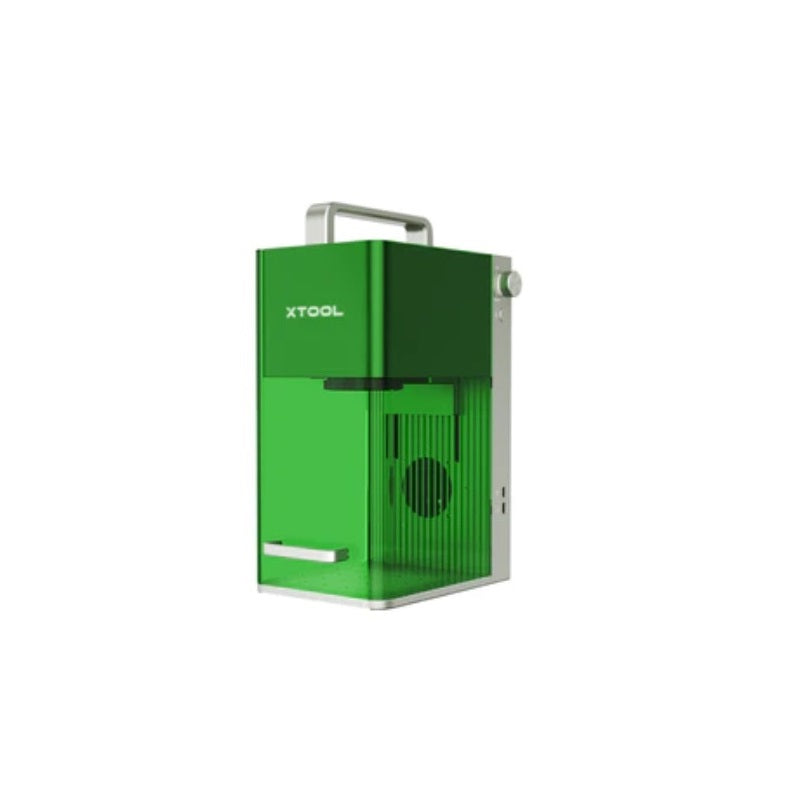

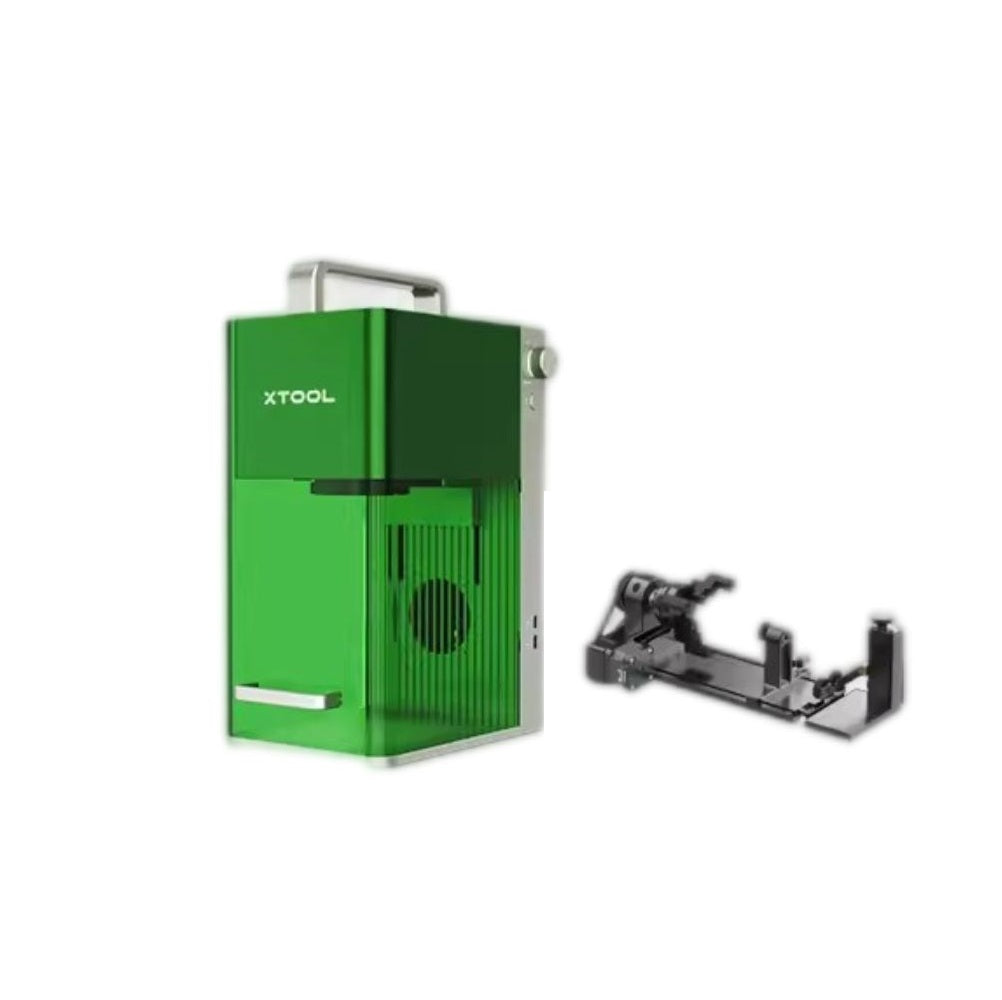

xTool F1 Laser Engraver Portable Dual Laser
xTool F1 Laser Engraver Portable Dual Laser
WE CAN PROVIDE:
Want (Order/Discount Code/ Warranty Service):
- If you don't have a discount code? Don't forget to contact us.
- Offline Store (Dubai) Pick Up ,More Discount.
- Free warranty 365 days, old users enjoy 70% discount on replacement parts.
xTool F1 Laser Engraver Portable Dual Laser Cutter With IR + Diode Laser Engraving Cutting Machine Tools DIY Fiber Mini Printer
Specifications
Type |
Details |
Laser type |
10W diode laser + |
Product size |
179mm*235mm*334mm |
Product weight |
4.6kg |
Accuracy |
Movement accuracy:0.00199mm |
Working area |
115*115mm rounded rectangle |
Preview |
Rect & Outline |
Preview speed |
Rect:12000mm/s |
Up to working speed |
4000mm/s |
Applications |
XCS / Lightburn |
Connection |
WiFi & USB |
Support file |
SVG / DXF / JPG / JPEG / PNG / BMP,etc. |
Support systems |
Android / iOS / iPad / Windows / macOS |
Input |
24V 5A |
Description:
1.The Fastest Portable Laser Engraver: With its Industrial-grade galvanometer system, xTool F1 laser engraving machine is capable of high-speed engraving at 240,000mm/min (4000mm/s). This laser engraver for wood and metal makes the complex vector graphics engraved in seconds to few minutes. Perfect for Batch Process, and raise your productivity and efficiency by 10 times.
2.Dual Lasers fit almost all Materials: xTool F1 lazer engraving machine is the world's first Diode and Infrared laser cutter and engraver machine that integrates a 2W 1064nm infrared laser (for all-metal and plastic) and a 10W 455nm diode lazer (for cutting wood, acrylic,etc). The Diode and Infrared laser engraver for wood and metal support almost all materials options and is capable of customizing business cards, art&crafts, photo engraving, laser marking.
3.Exceptional Engraving High Resolution and Precision: The Ultra galvo systems of the laser engraver for metal brings 0.00199mm accuracy and 0.000248 repetition accuracy, which can display superior clarity than ever before, with all tiny details of the laser engraving can be shown. With its sturdy metal structure and precise control, xTool F1 fiber laser engraver delivers precise, clear, and high-quality engraving.

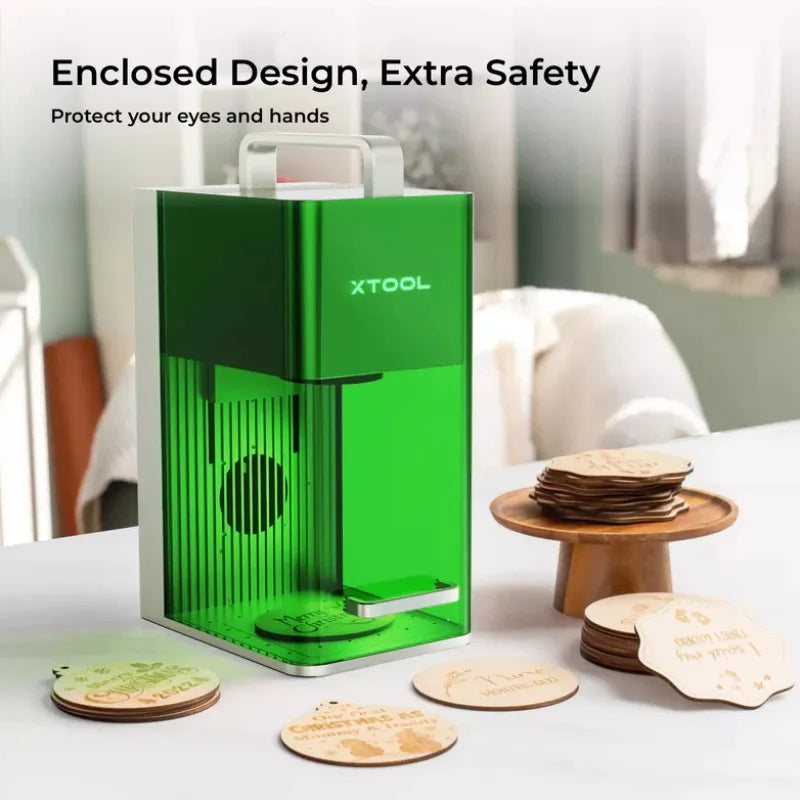

4.Safe for Indoor and Outdoor Use: The xTool F1 mini laser engraver is pre-assembled and comes with a fully enclosed cover, which seals off unpleasant smoke and protect the eyes from laser. With a built-in fan and air purifier (separate purchase), it sucks away all the smoke and smell. Bring F1 portable laser engraver anywhere with only 4.6kg weights, it’s perfect for craft shows/fairs, flea markets, wedding/special events, souvenir shops and more to imagine.

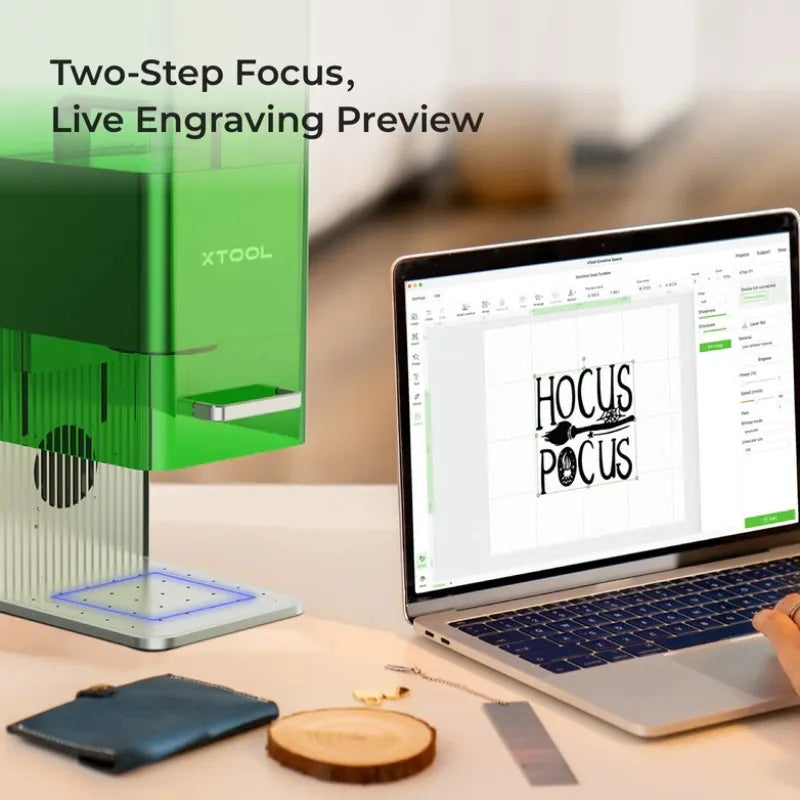

5.Intuitive even for Beginners: By providing a user friendly and easy operation, xTool F1 laser engraver for metal is equipped with auto/manual focus modes and a high-speed preview feature, so accurate material positioning simple and stress-free for its users. This wood engraver is compatible with the XCS software and Lightburn, and supports phones, iPads, and laptops. Additionally, the xTool Creative Space provides over 300 creative cases to help you start laser engraving easily.
FAQ
---Compared to the counterpart from other brands, what are the merits of F1?
---Overwhelming speed: 4000 mm/s! Top one among all the glavo laser machines! We made it because we adopted the industrial grade galvo system, which guarantees precise and accurate engraving even at extreme speed. 5 secs, make a metal business card; 1 sec, make a paper card; 6 secs, make a leatherette patch.
Super high engraving accuracy: 0.00199mm
The world's first dual laser in a machine! No 2 laser heads.

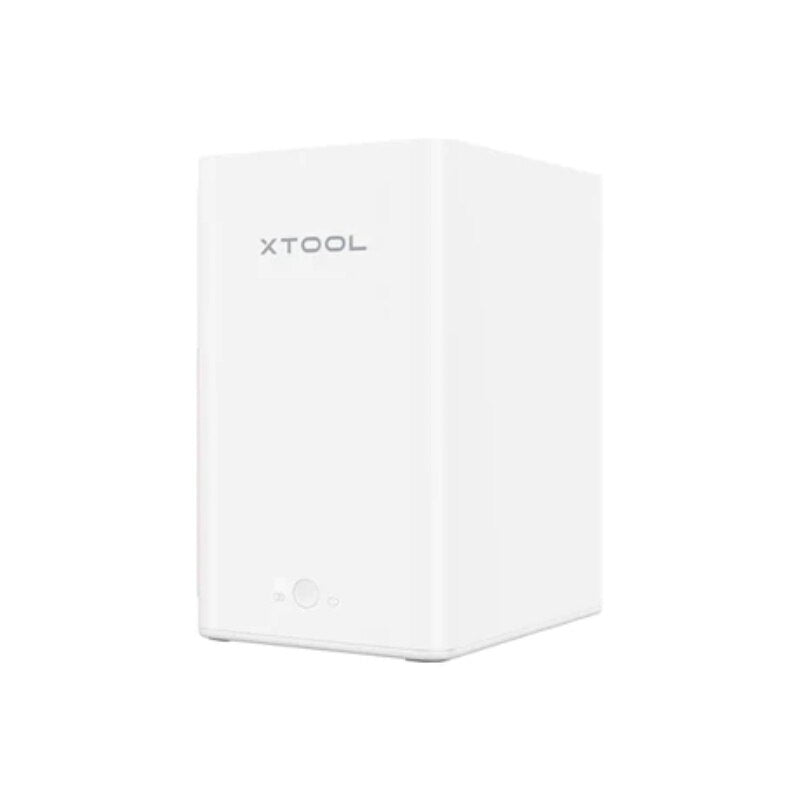

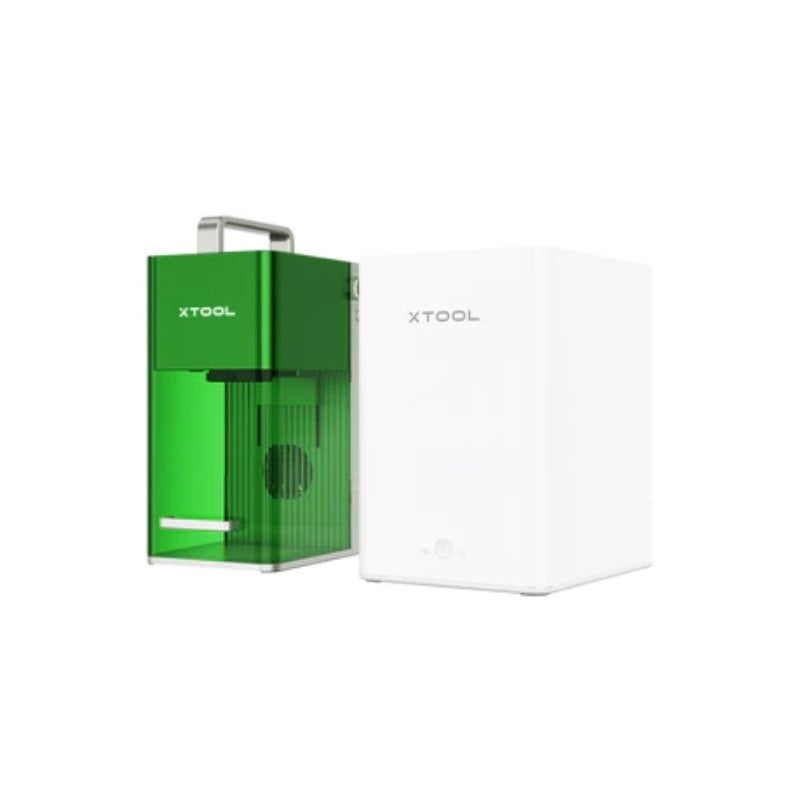

Safe and clean processing: Compatible with Desktop Smoke Purifier and RA2 Pro for xTool F1
---The galvanometer sounds cool! What's that?
---Dual-galvanometer (shortened to galvo) lasers use two precision mirror galvanometers to direct the beam at any angle within the marking window of the laser. This allows the beam to move very quickly. Galvo is often used in industrial batch processing.
---How do the dual lasers work in F1?
---With both 455nm blue laser and 1064nm infrared fiber laser in a machine, it emits diode laser or infrared laser SOLELY (not at the same time). Laser change can be done on xTool Creative Space.
---Do you know more about xTool F1 engraving?
---Super high engraving accuracy: 0.00199mm
Processing area: 115*115*113mm rounded rectangle
Engraving materials: Up to 300! Its diode laser engraves wood, leather, acrylic, glass, ceramics, rubber, fabric, slate, etc. The IR laser engraves gold, silver, copper, platinum, aluminum, iron, and most common metals.
Repeat positioning accuracy: 0.000248mm
---Do you know more about xTool F1 cutting?
---The 10w diode laser cuts 3 mm basswood, 3 mm black acrylic, leather, and cardboard.
Recommended cutting parameter:
3 mm basswood: 100% power, 3 mm/s
3 mm black acrylic: 100% power, 3mm/s, 2 pass
---Compared with D1 pro / M1, which one should l choose?
---If you need to process large objects, we recommend you use D1 Pro / M1. If you are looking for super fast, portable, smaller-size, and multi-material engraving without changing heads, it is recommended to buy xTool F1.
